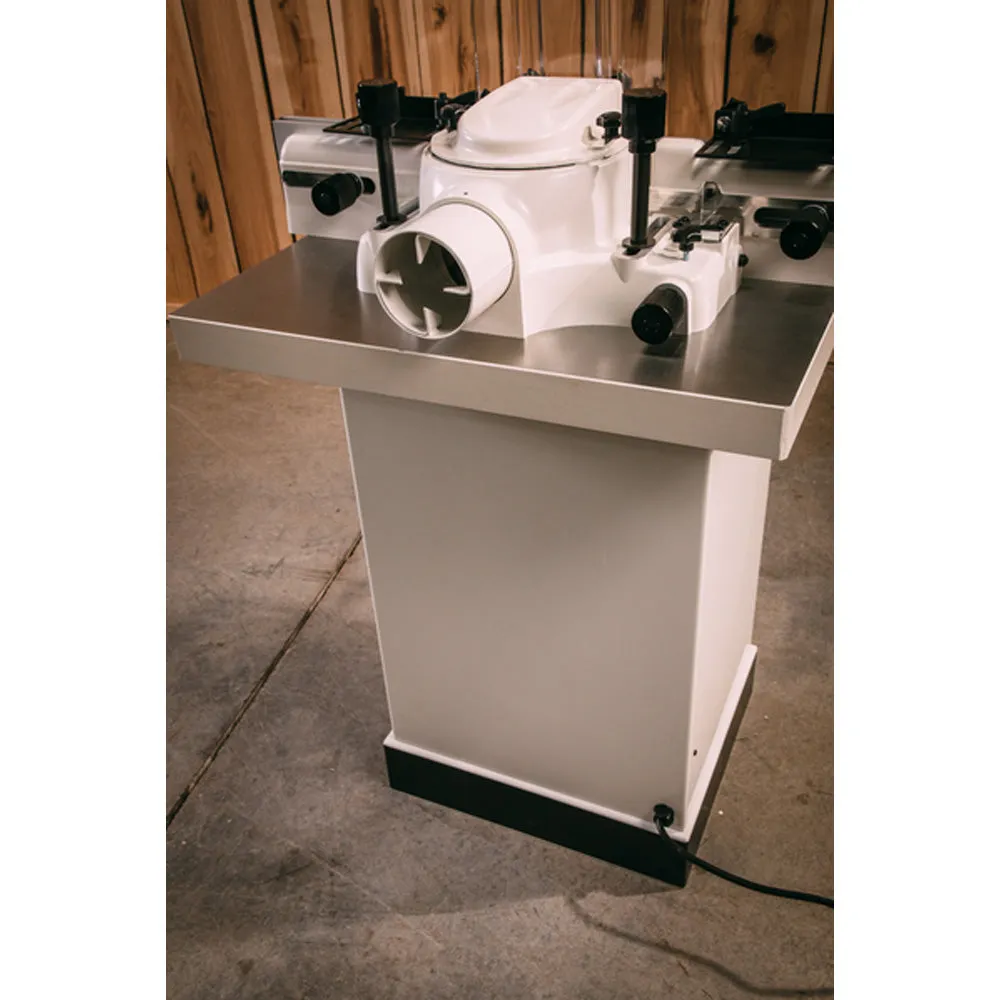

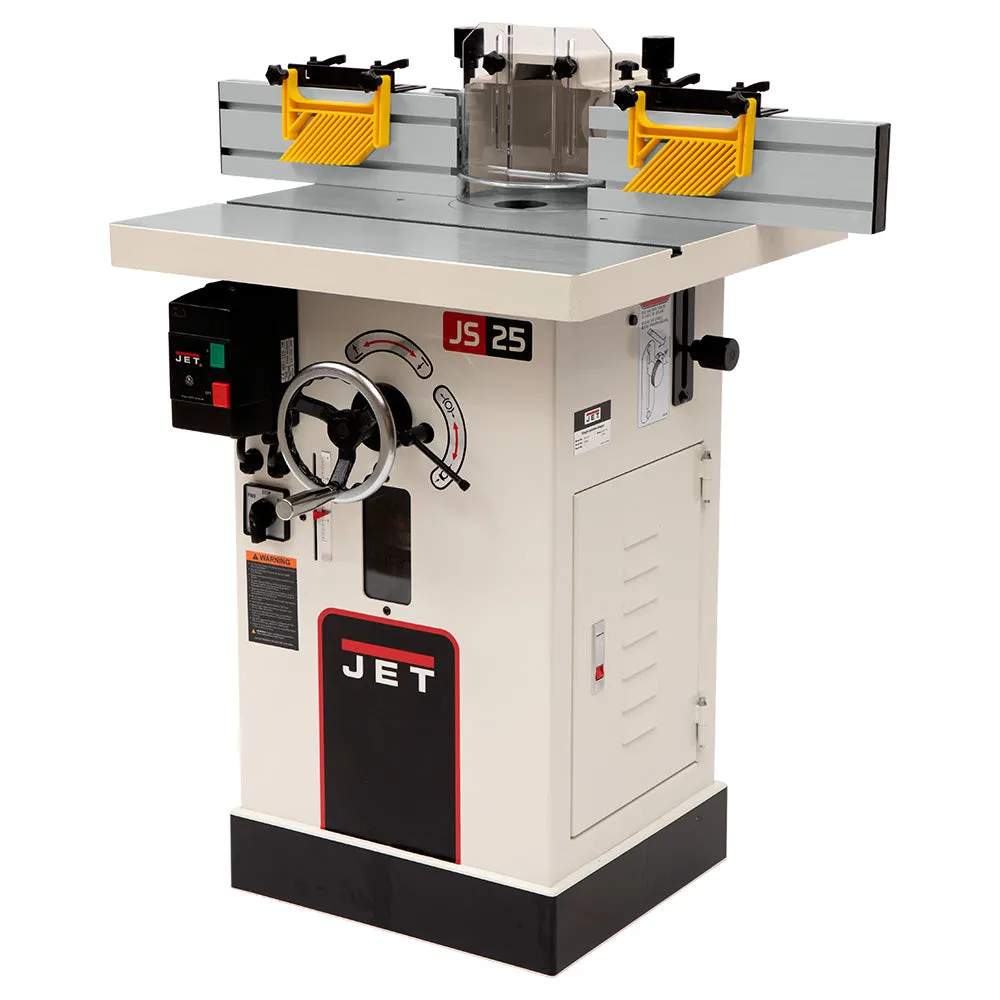

The new model JWS-25X Shaper features a powerful 3HP motor with magnetic controls. The large 25”x 25-1/2” precision ground cast iron table provides plenty of support. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independently adjustable left and the right fence has a built-in 4” dust port.
JET warrants every product they sell against manufacturers’ defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.
[TABS]
Features
- Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments

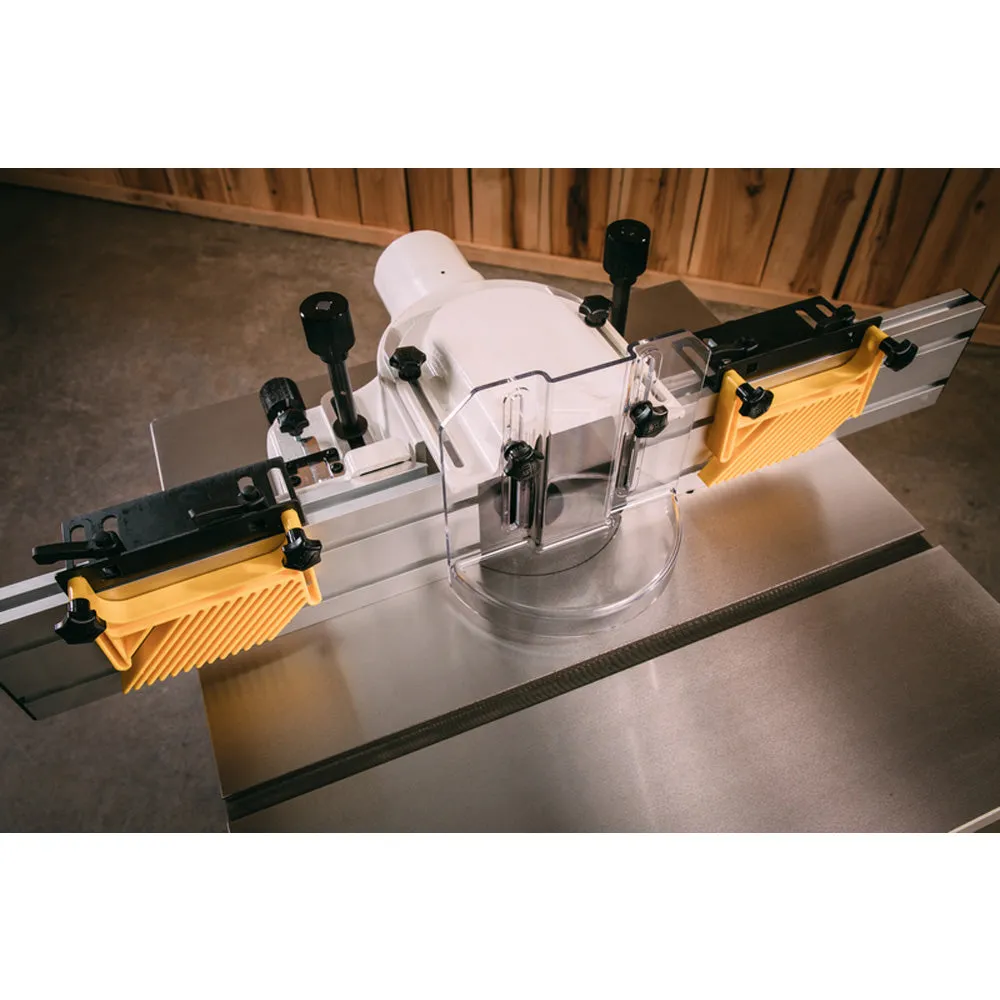

- Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
- Reversible spindle speeds for diverse shaping jobs

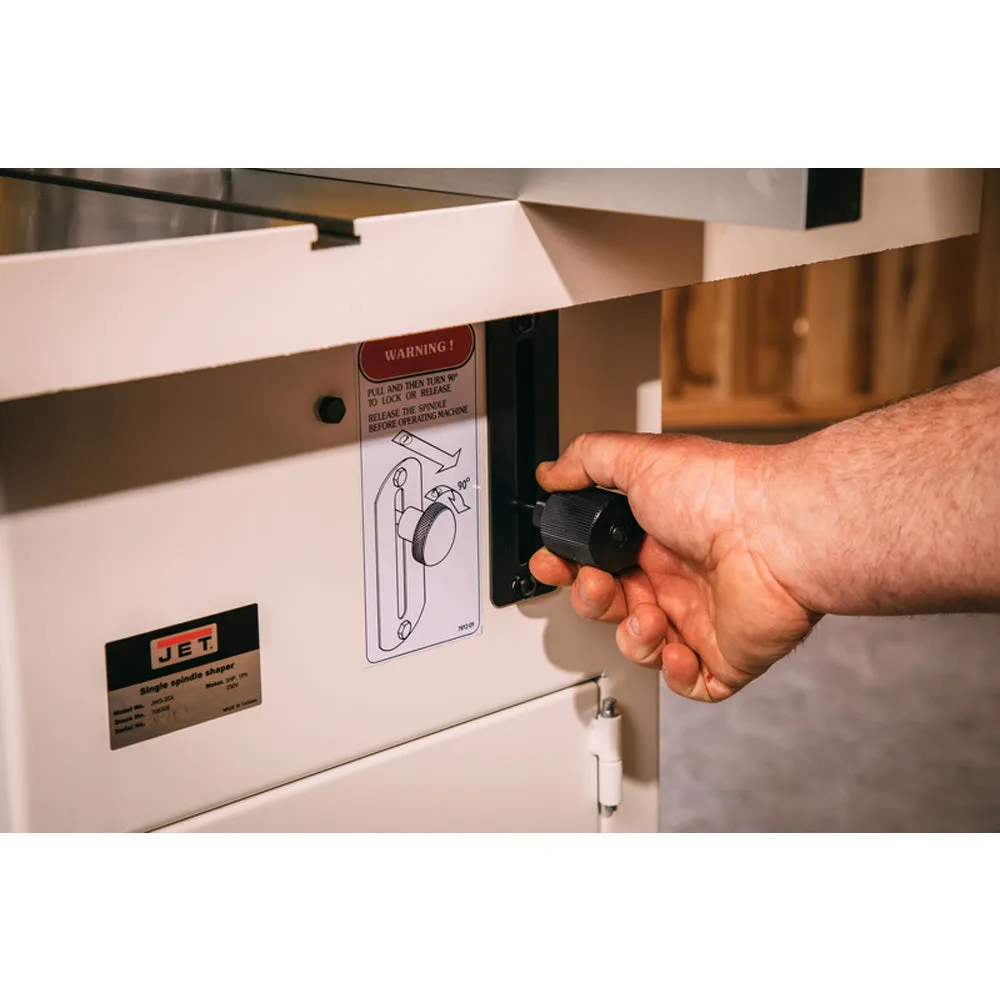

- Spindle lock for safe and easy cutter set up
- Starting Pins for irregular shaping
- Two-speeds let you select the best speed and torque for different cutter diameters
- V-belt transfers maximum power to the spindle
Specs
Dust Collection Minimum CFM Required (CFM): 600
Dust Port Outside Diameter: 4"
Motor Amps: 16
Motor Power (HP): 3
Motor Voltage (V.): 230
Prewired Voltage (V.): 230
Recommended Circuit Size (Amps.): 30
Spindle Travel: 3-1/2"
Table Height from Floor: 33"

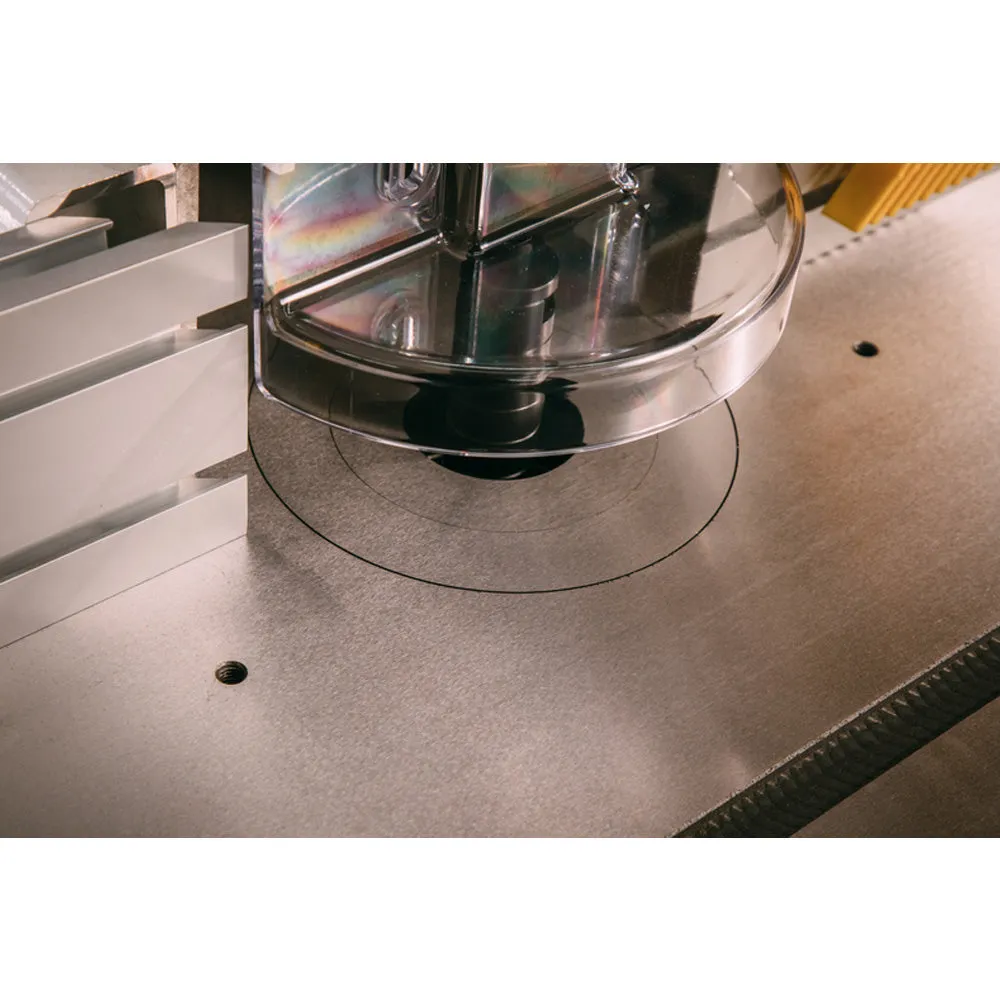

Table Inserts: 2"
Table Opening Diameter: 6-9/32"
Table Size (L x W): 25-1/2" x 25"
[/TABS]
