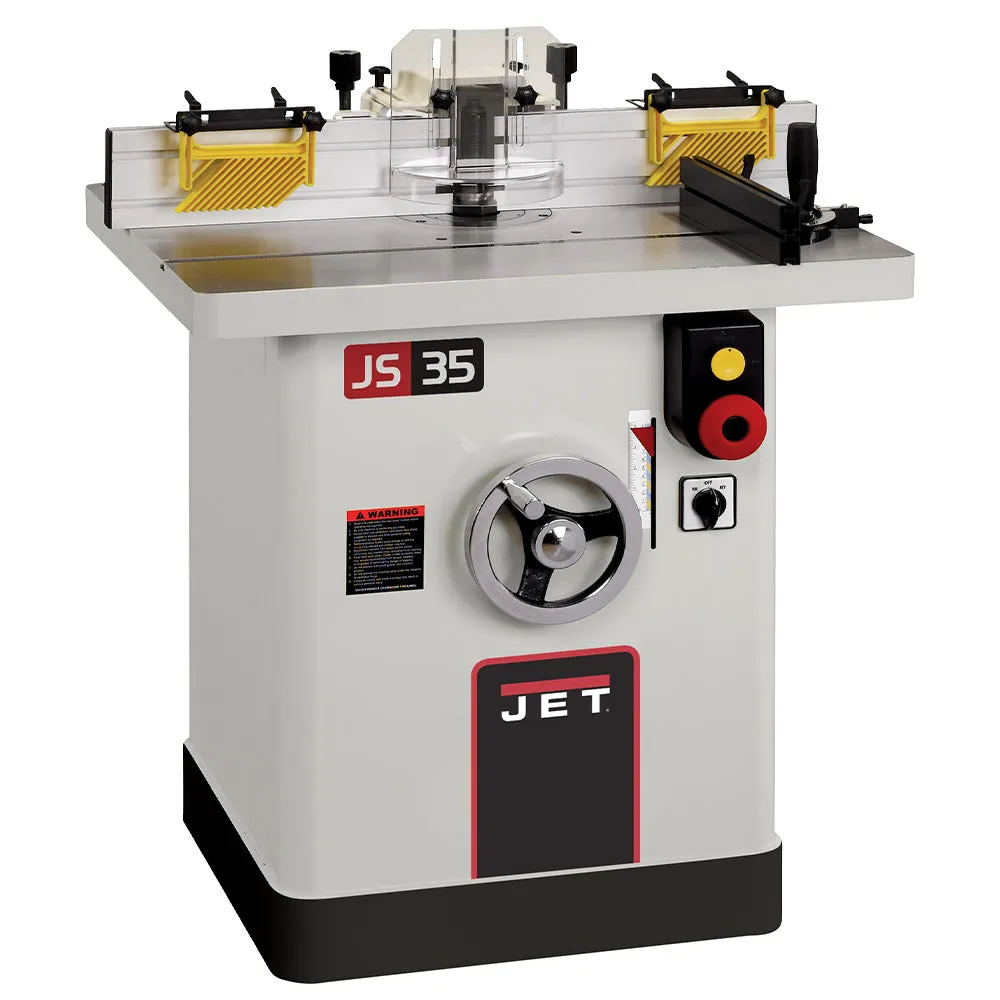

This heavy-duty JET Shaper is available with a powerful 5HP, 1Ph motor with magnetic controls. The four-speed (4000, 6000, 8000, 10000 RPM) step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. The spindle is reversible, and receives maximum power transfer from the v-belt. The independently adjustable fences have micro adjust controls for precise positioning.

JET warrants every product they sell against manufacturers’ defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.

[TABS]

Features

• 4" Dust port built into fence for convenient hookup to any dust collection system

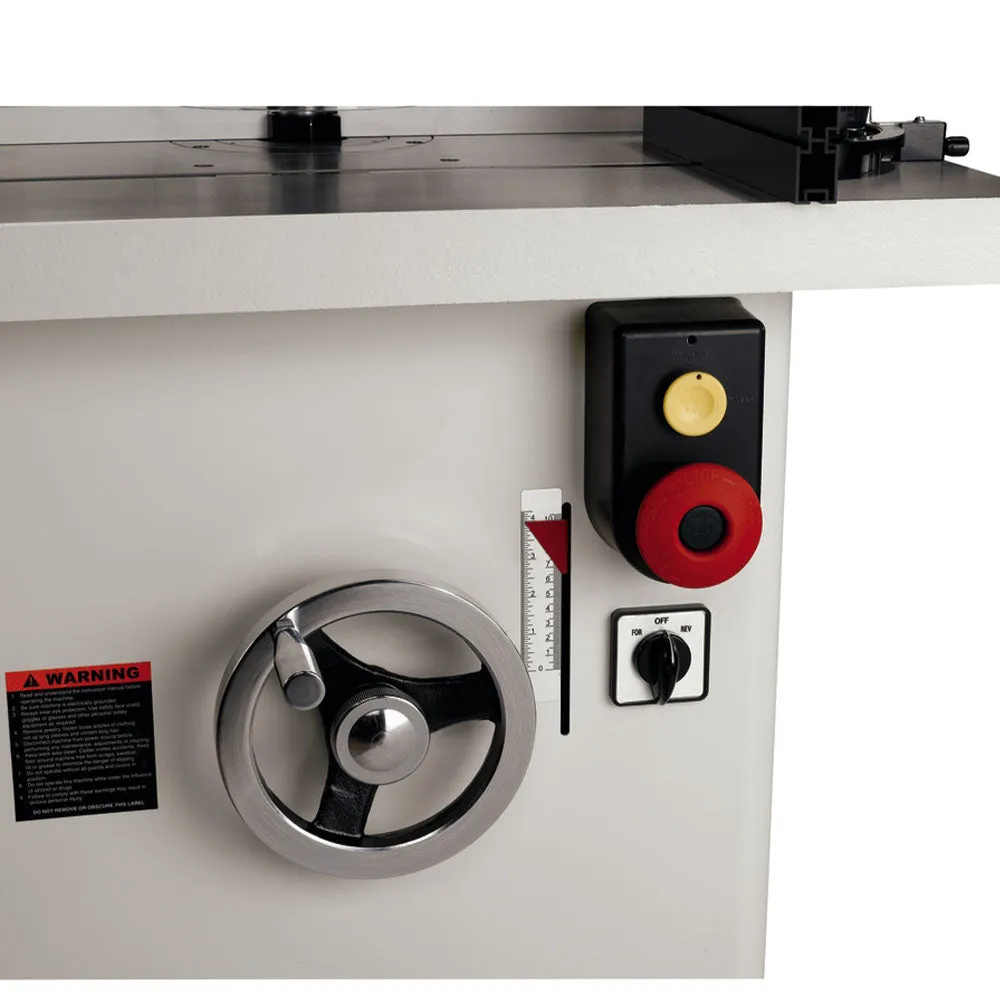

• Extra-large chrome handwheel is conveniently located for fast, easy, and accurate spindle height adjustments

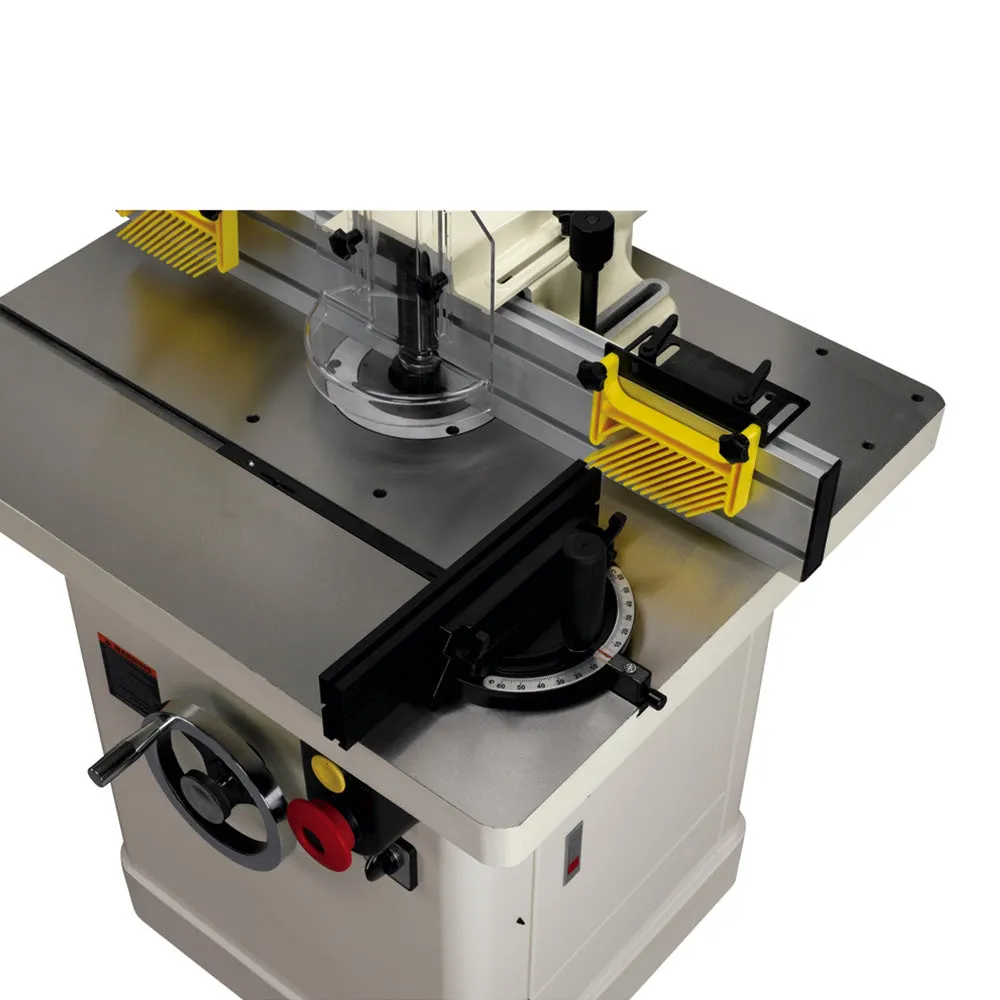

• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
• Four RPM speeds (4000, 6000, 8000, 10000) let you select the best speed and torque for different cutter diameters
• Large 26-3/4” x 32-1/4” precision-ground cast iron table provides a durable work area and is predrilled for power feeder

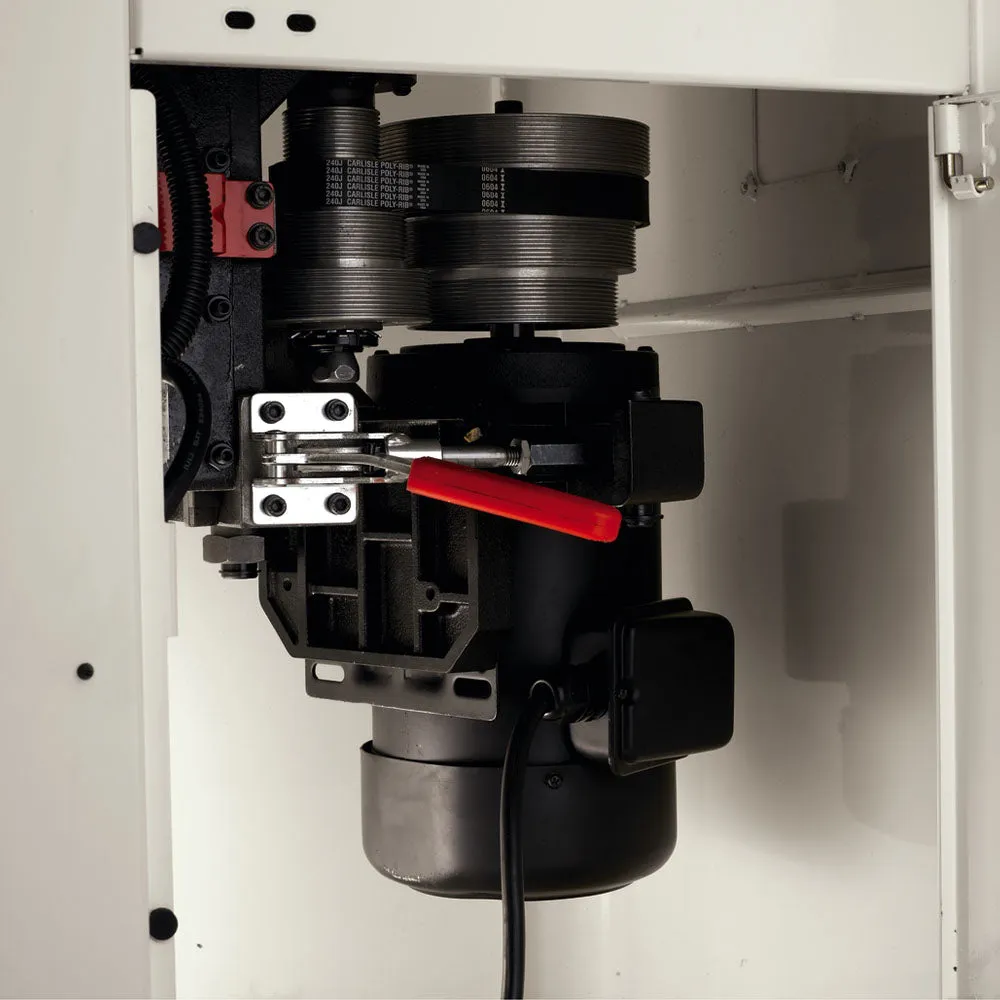

• Poly-V-belt transfers maximum power to the spindle
• Powerful 5HP, 1Ph motor with magnetic controls
• Reversible spindle speeds for diverse shaping jobs
• Starting Pins for irregular shaping
• V-belt transfers maximum power to the spindle

Specs

Dust Collection Minimum CFM Required (CFM): 600
Dust Port Outside Diameter (In.): 4
Maximum Spindle Diameter (In.): 1-1/4
Motor Amps: 17
Motor Power (HP): 5
Motor Voltage (V.): 230
Prewired Voltage (V.): 230
Spindle Size Under Nut (In.): 4
Spindle Travel (In.): 4
Table Height from Floor (In.): 33-1/4
Table Inserts (In.): 2
Table Opening Diameter (In.): 6-19/64
Table Size (LxW) (In.): 32-1/4 x 26-3/4
